Large Airbrush Spray Booth LED Lights SB04

(13 customer reviews)


· Carry Case Size – 55cm x 27cm x 32cm

· Extended Working Area Size – 55cm wide x 35.8cm deep x 34.5cm tall (max).

· Total Depth (rear of unit to front edge) 48cm

· Exhaust Hose Kit

· 3 LED Light Strips 2340LM – Adjustable

· Less Than 53db

· Massive 9m3 Air Flow – Adjustable

· Removes Airborne Contaminants From Workspace

· Turn Table Included

· UK Mains Adapter Plug

· 1 Year Warranty

23 in stock



Large Airbrush Spray Booth LED Lights

If you haven't got a large airbrush spray booth with exhaust kit and LED lights then you are probably:

Airbrushing in a room filled with fumes?

Got airborne overspray settling on, and damaging, other items in your room?

Struggling to see the detail on your project?

Have you tried to solve this problem by creating a cardboard spray box which just isn’t cutting it?

The Answer? Read More

BARTSHARP Airbrush SB04 Large Airbrush Spray Booth

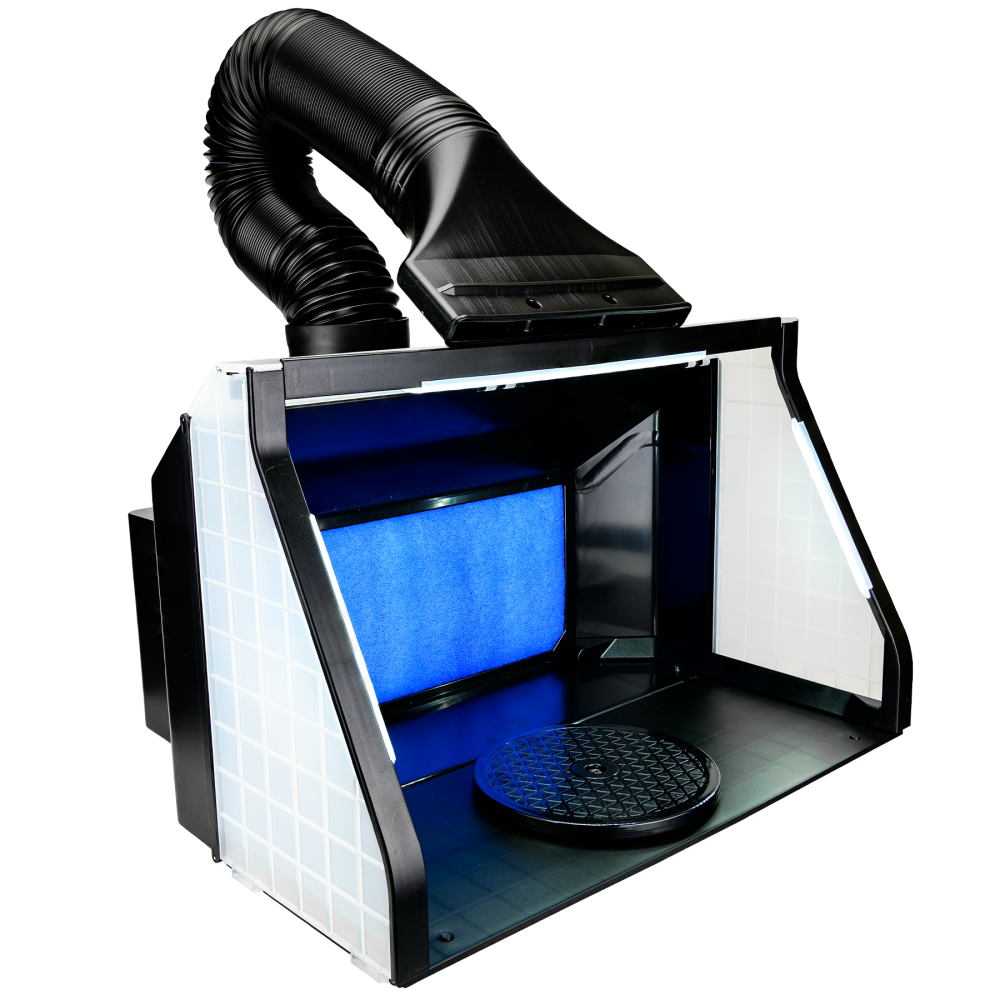

The BARTSHARP Airbrush SB04 Large Airbrush Spray Booth is the latest addition to our range of airbrush spray booths and is our top performing model.

Our other airbrush spray booth models extract a massive 4m³ per minute, however, the SB04 Large Airbrush Spray Booth pulls an incredible 9m³ of air through the filter unit every minute! This is more than twice the performance.

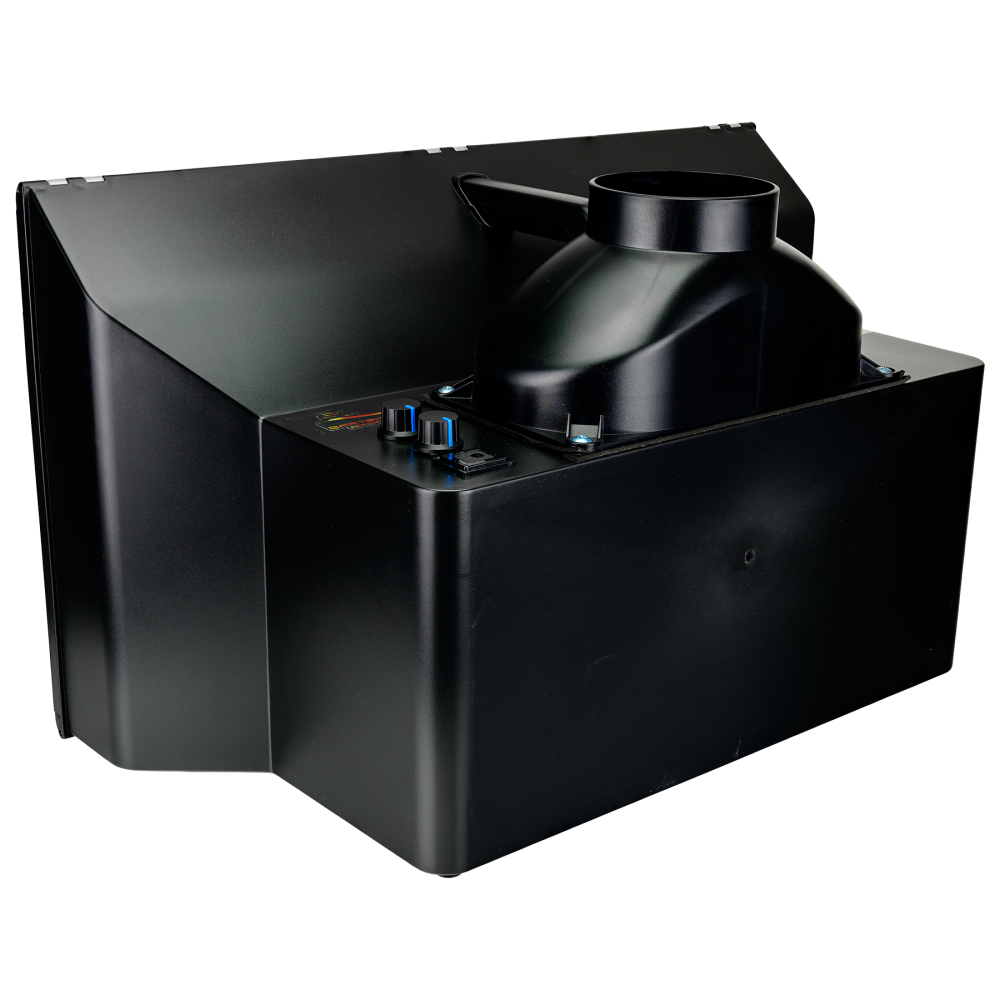

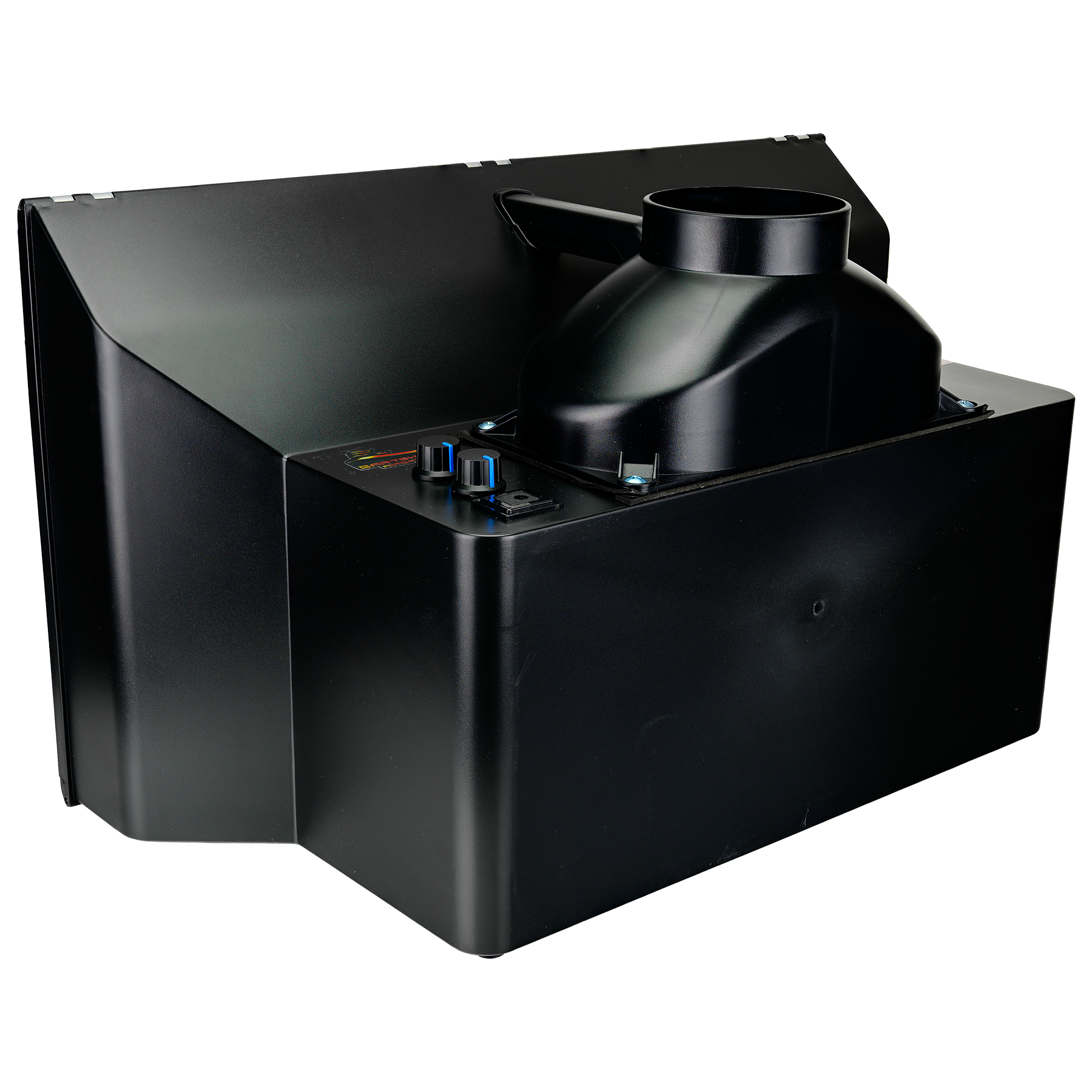

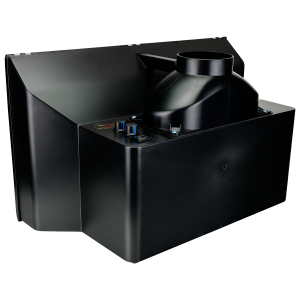

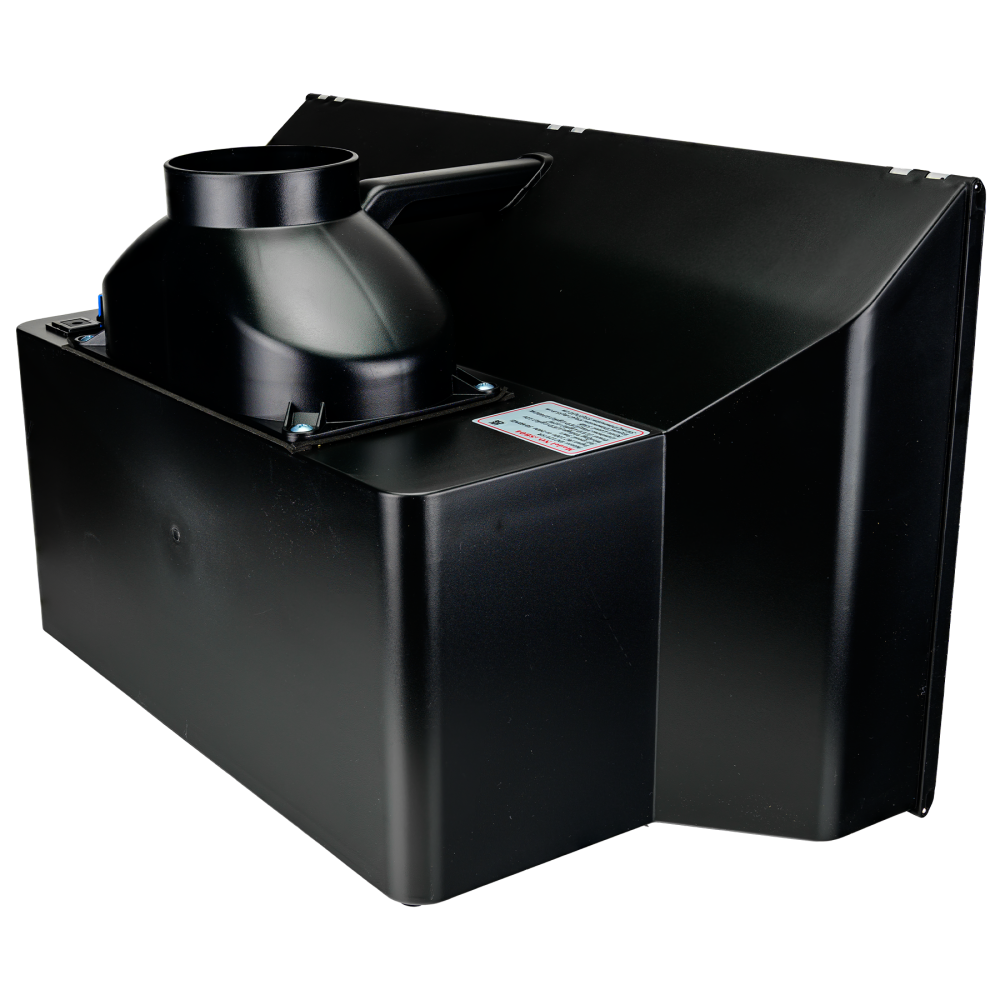

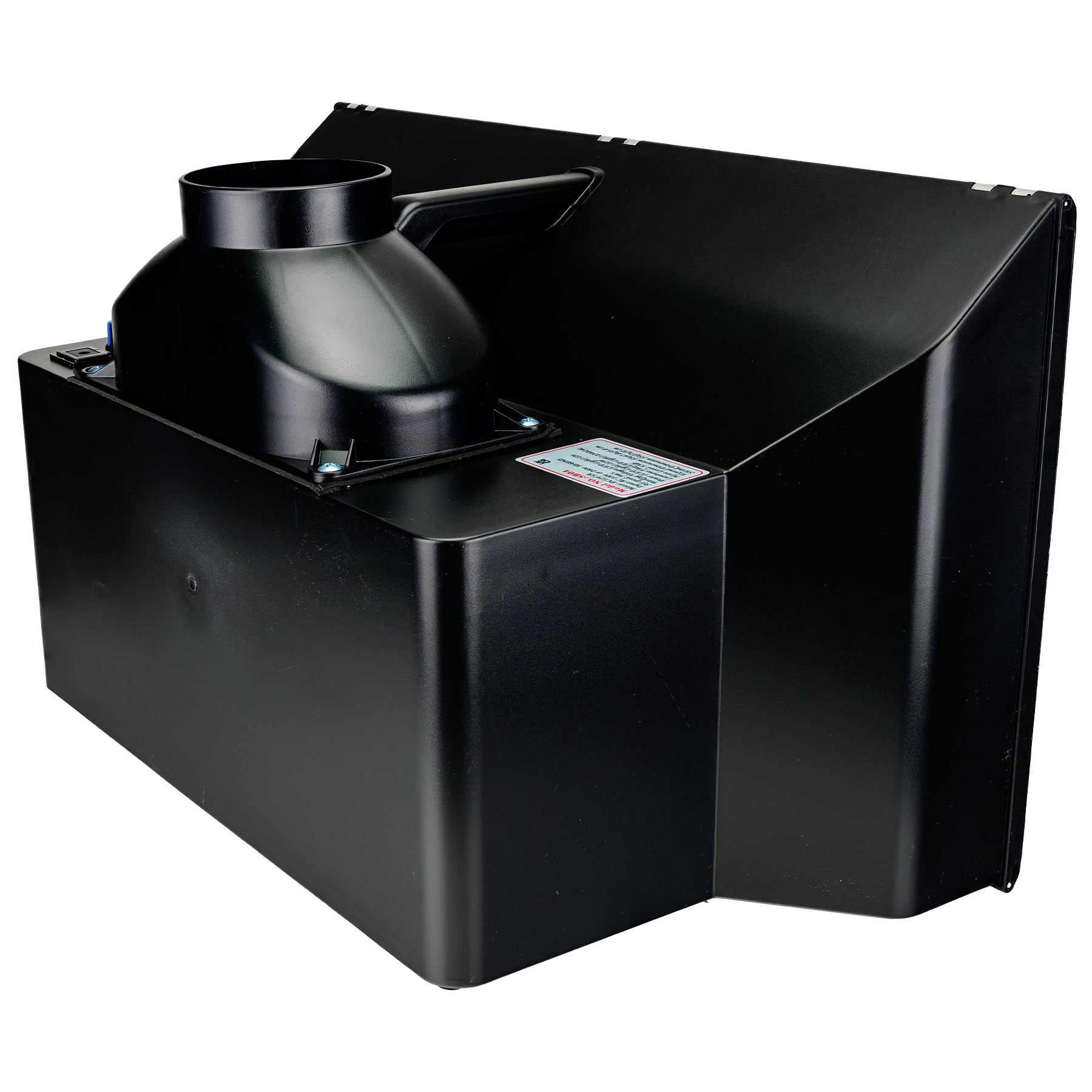

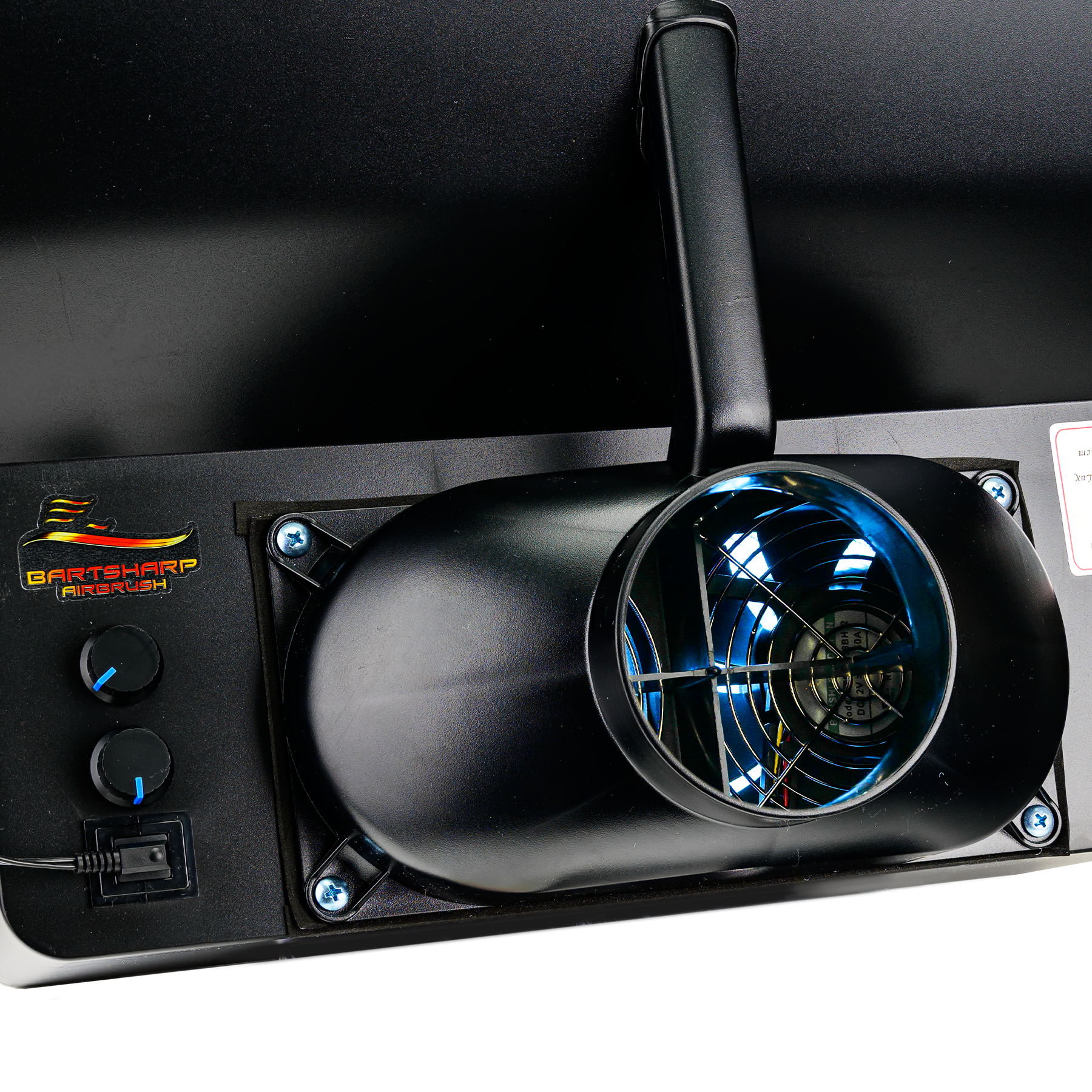

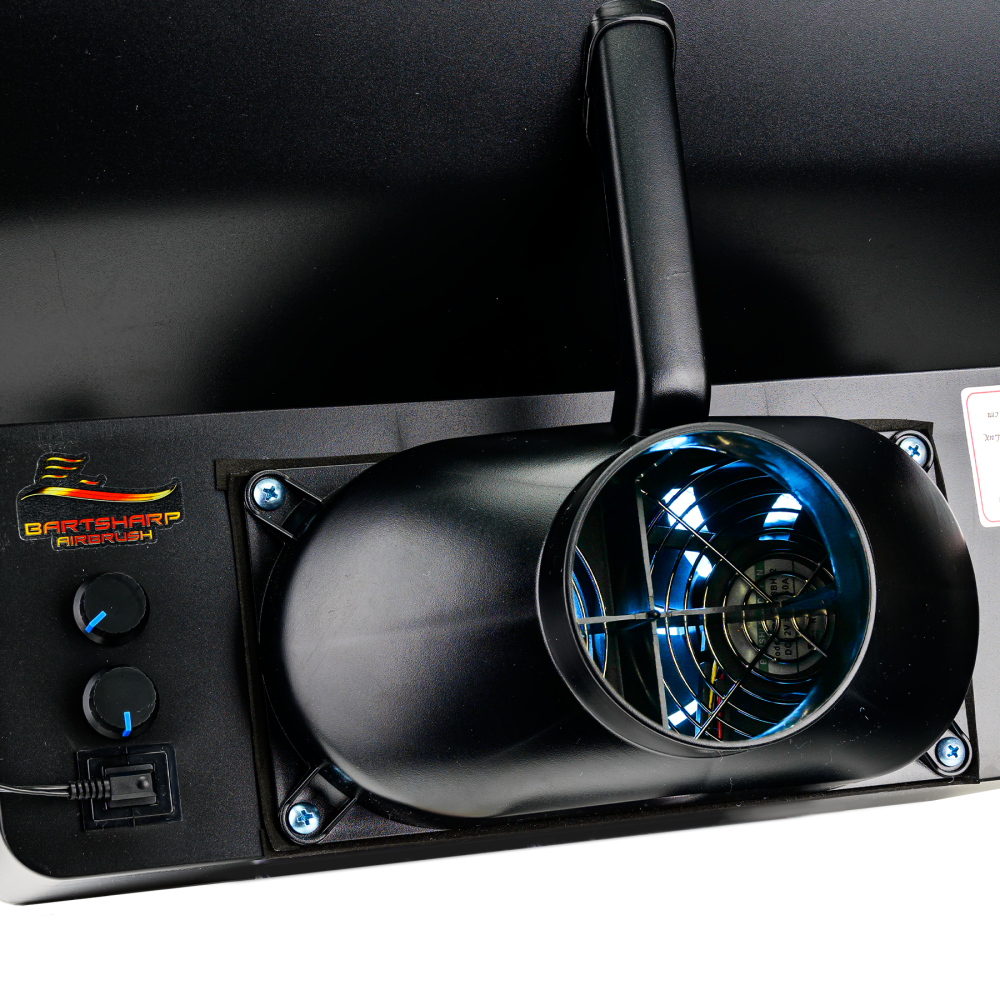

The portable airbrush spray booth has two inbuilt extractor fan units which displace contaminated air into one air outlet and exhaust air hose.

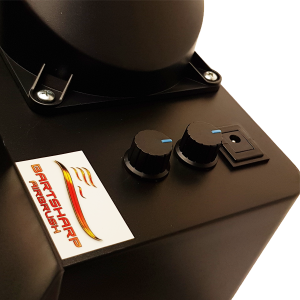

The power of the extractor can be fully adjusted by turning up, or down, the control dial.


Airbrush Spray Booth


The small but powerful motors creates less than 53db which means you won’t be disturbing other family members.

The unit has a power converter (DC12V 5A) with fitted 3 pin UK plug. The cable, from plug to power converter, is 140cm / 55" long, whilst the cable, from the power converter to spray booth inlet jack, is 91cm / 36" long.

Airbrush Spray Booth Power Converter

Your spray booth has a pre installed filter which is made up of two layers giving an optimum total thickness (approximately 30mm) and density.

Other suppliers provide filters with a thickness of 20mm. Our filters are approximately 30% thicker and provide a massive surface area, fantastic air flow and ultimate performance.

Our filters can also be rinsed through to remove overspray which will, in turn, increase the life of the filter before it needs replacing.

We also have a huge stock of Replacement Filters manufactured to the same exacting standards.

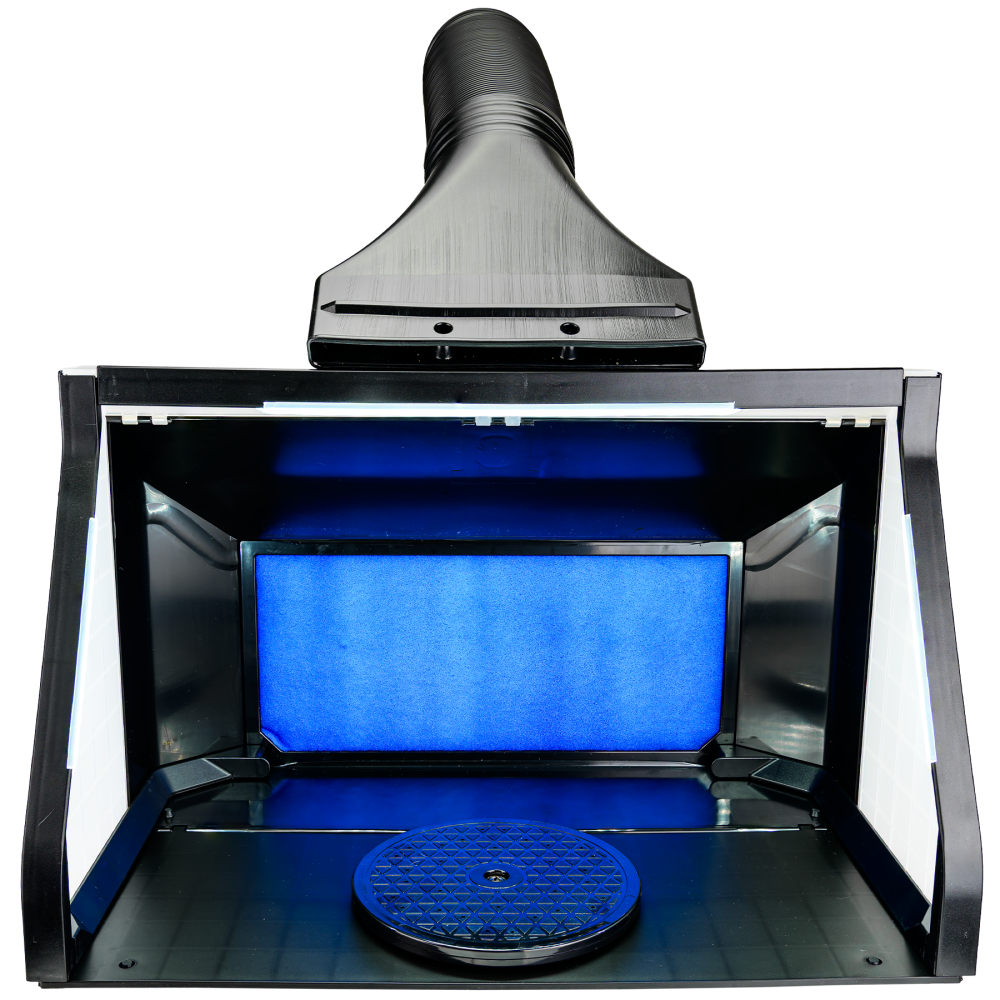

Portable Airbrush Spray Booth With Lights

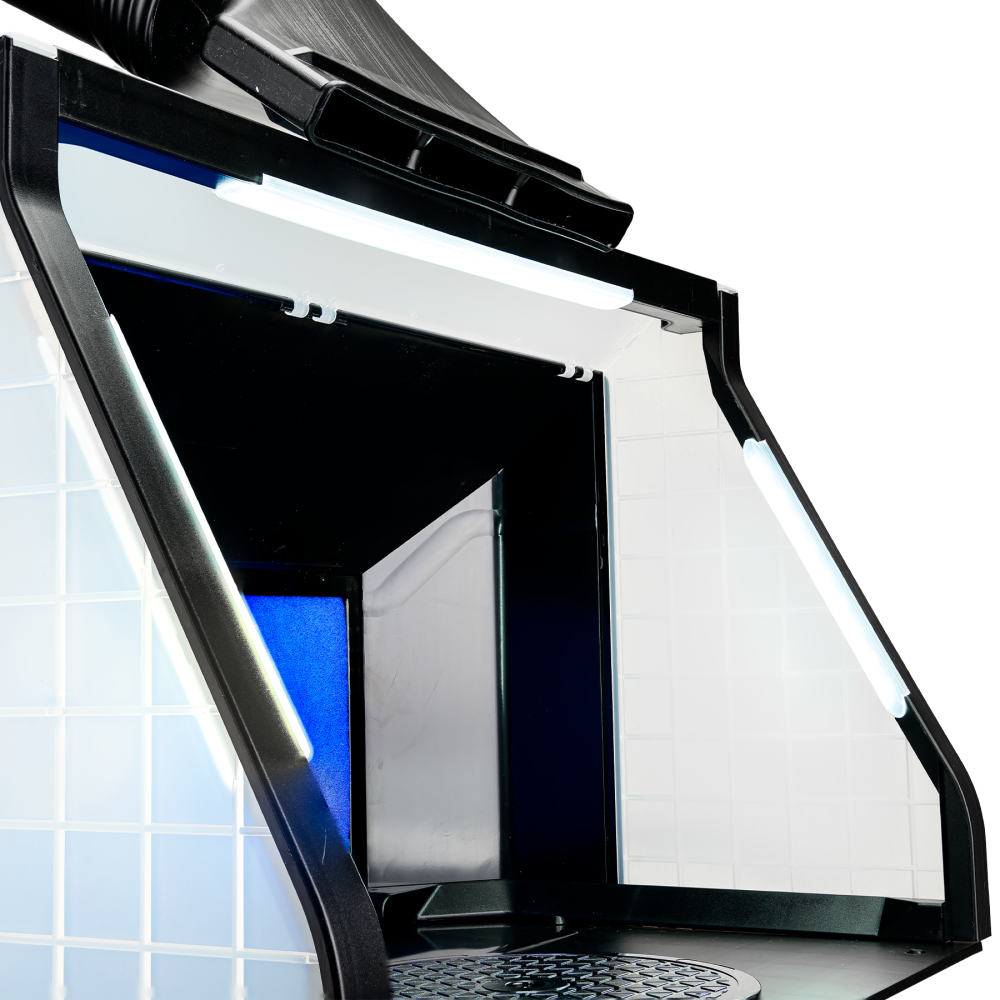

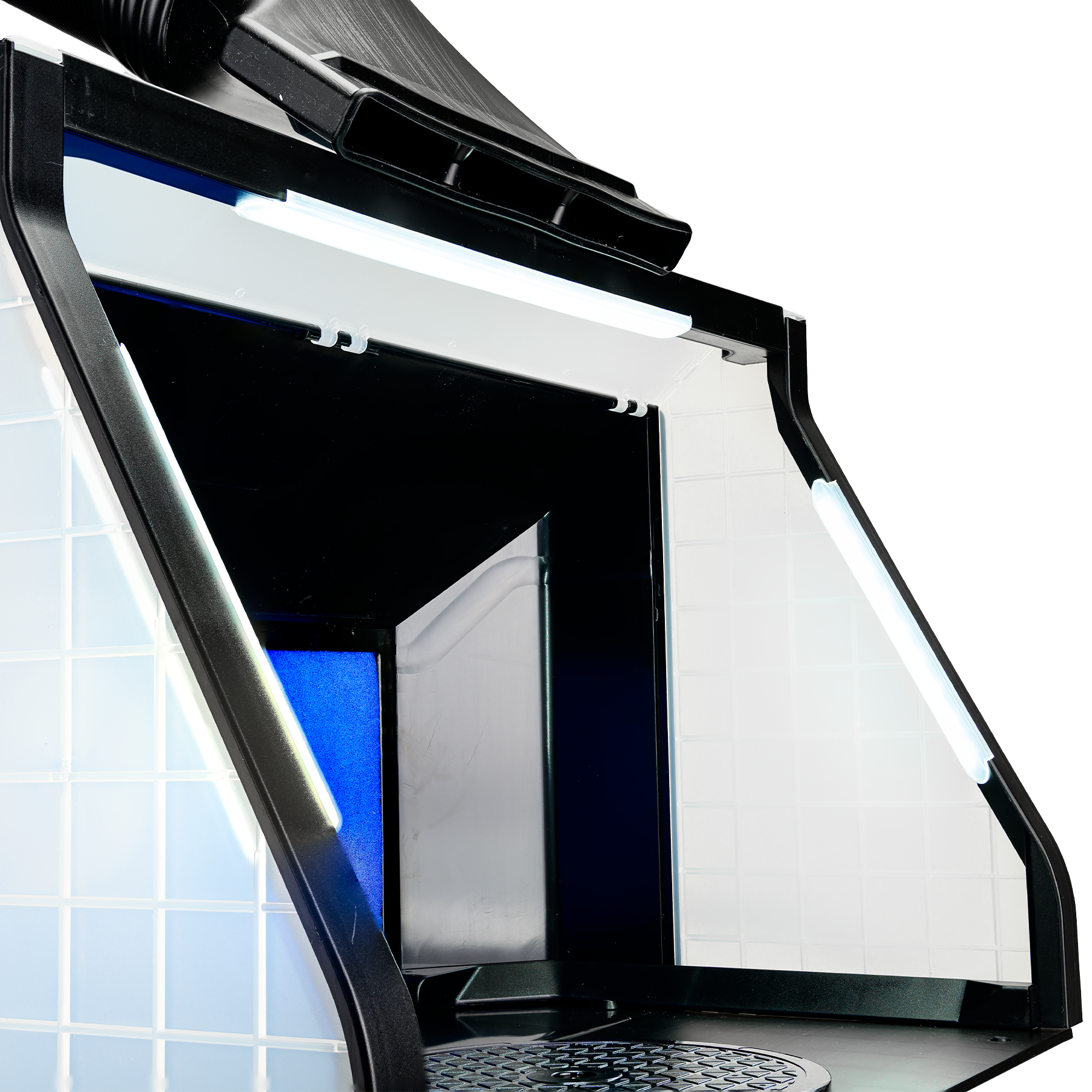

The SB04 Airbrush Spray Booth With Lights has three strips of super powerful LED lights.

These lights simply push fit into each other and the spray booth frame and produce an incredible 2340LM of crystal clear light.

Our other spray booth models provide 1200LM of light so the increase in illumination power is easy to see.

The LED lights can be fully adjusted by turning up, or down, the control dial (see image above).

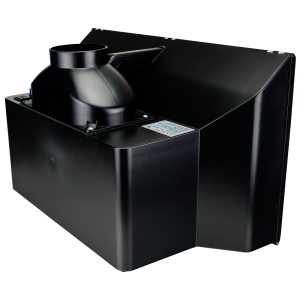

The SB04 Portable Airbrush Spray Booth folds away to 55cm x 27cm x 32cm and becomes its own carry case with handle.

When extended and fully set up it provides a workable spraying area of 55cm wide x 35.8cm deep x 34.5cm tall (max).

Total footprint (when set up) is 55cm wide x 48cm deep x 34.5cm tall (max).

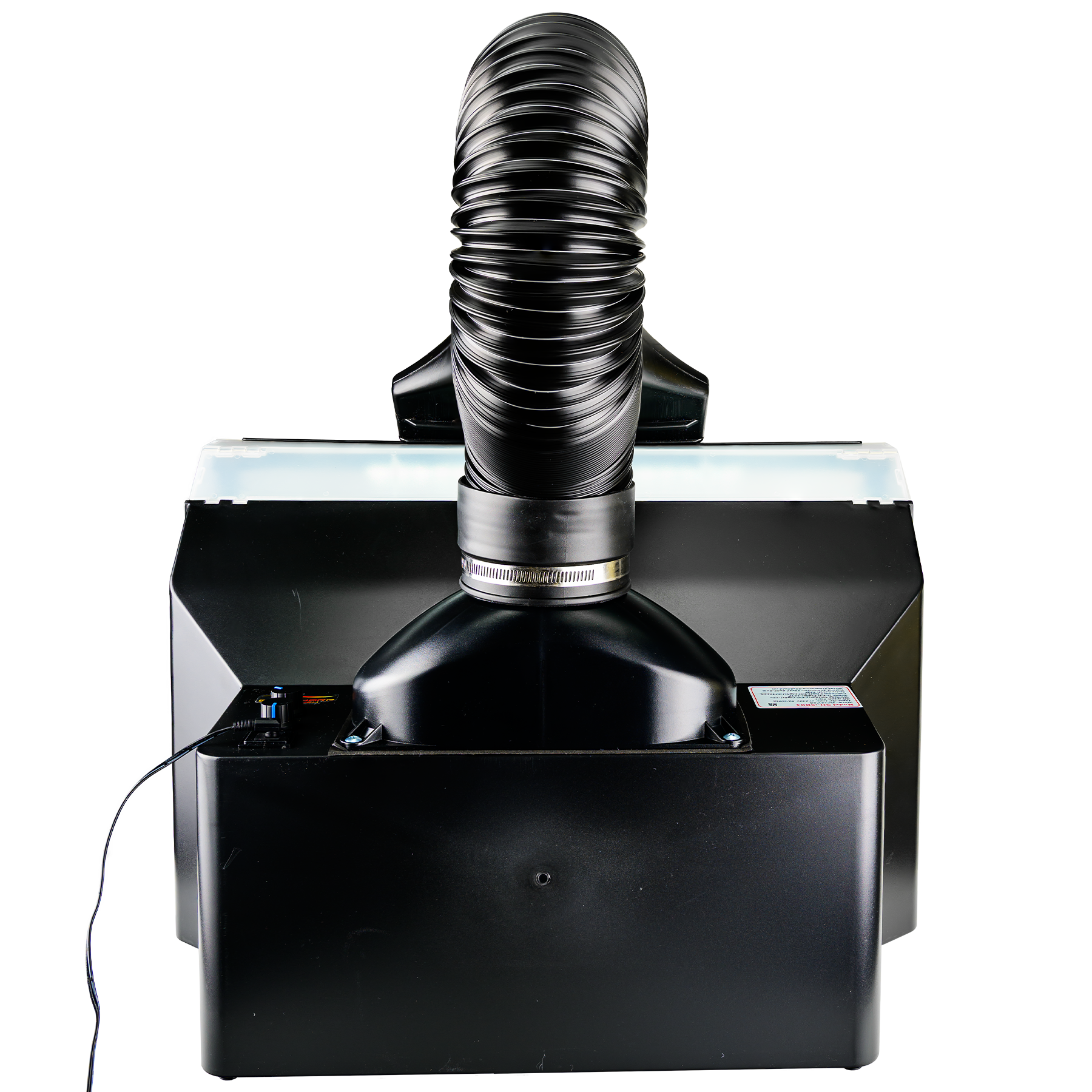

The unit can be pushed fully back against a wall as the exhaust air hose exits out of the top of the spray booth.


The Airbrush Spray Booth has been manufactured for us in stylish and durable black plastic.

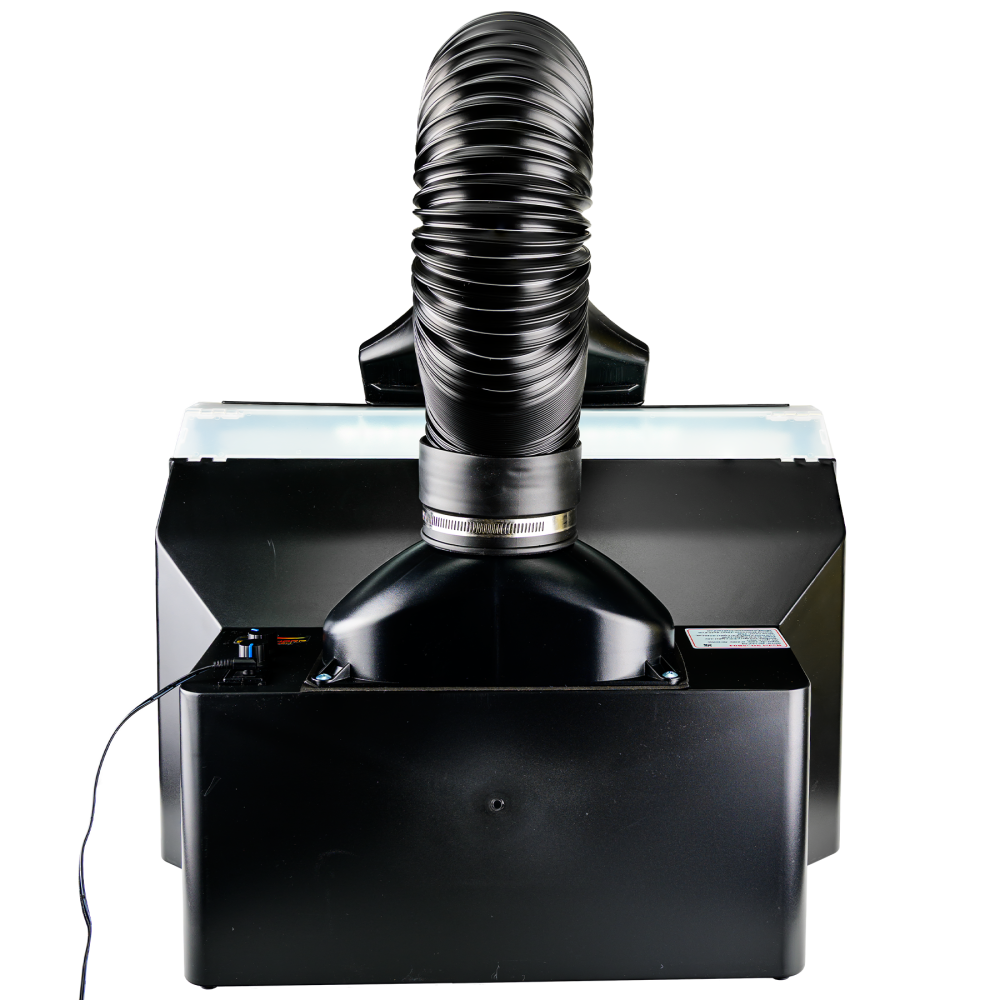

The Airbrush Spray Booth Exhaust Kit is included and supplied with all necessary fittings.

The hose is highly flexible and can be compressed, for more compact spaces, or extended to approximately 5 1/2 foot.

The kit includes as specifically designed slim end fitting so that the exhaust hose can be vented out of a window with minimum opening.


All of our air brush spray booths are supplied with a fully rotating turn table which has a diameter of 19cm.

Ideal for the airbrushing of models, miniatures, war gaming figures and cake decoration.



Scale Hangar 182

Dawid Branski is the creator of "Scale Hangar 182" YouTube channel.

He has over 75,000 subscribers which is down to his incredible ability to create fantastic works of scale model art.

We are proud to say that Dawid will only use a BARTSHARP Airbrush® Spray Booth and airbrush spray booth filters because of the level of performance that they provide.

Please click the image below to visit "Scale Hangar 182" and to see the incredible work created by Dawid.

Additional information

Weight5.1 kg
Dimensions61 × 34 × 38 cm

x 1, x 2

13 reviews for Large Airbrush Spray Booth LED Lights SB04

  1. Terry Morton (verified owner)

    This is just what I have been looking for, excellent air extraction with the two fans. Plenty of room for spraying and hand painting and extremely bright with the Led set up Love it. Thanks

  2. Norman Otty

    Excellent service just got this delivered, cannot wait to get it assembled. Nice size, plenty of room for spraying. Double extraction fan. Excellent buy.

  3. Steve Winslade (verified owner)

    Fantastic bit of kit the duel fan is a beast it sucked air from 2 foot from the front of it. You can also turn the power of the fans down. The lights are great as you can dim them and they light up the area great. One of the best bits is the air outlet come out of the top and not the back which saves you space. It fits together easy as it interlocks and the sids are rock solid as all held together with the way the lights go on. It’s higher than the other one but you have more spraying room. And you get plenty of lead to plus it in. It can be a bit noisy at full tilt but you can still speak to someone but I don’t think you would ever need to go that high as it’s a lot of air being sucked through. That’s about it other than I don’t think you can go wrong with one.

  4. Norman Otty

    Large airbrush spray booth. What an excellent well constructed booth. With well thought out LED lights which give excellent light coverage.
    The double extraction fan is really great. One of the best ideas is the double switch, one for the double fan and a separate one for the LED lights.
    Really pleased with this purchase, well worth the price.

  5. Norman Otty

    This is a dream, excellent has everything you could want. LEDs, fan extraction. Simply well thought out, one of the best on the market.

  6. steve (verified owner)

    Fantastic bit of kit well worth the money. The double fan shifts a lot of air and nothing comes back at you. The led dimmable lights light up the whole are your spraying plus added bonus is you could stick a bit of cloth or card white black whatever colour you want and take photos in it as it al ready has lights. Not tried it yet but will do. Best bit of kit I’ve brought. If you’re on a budget and 5his is in your range I can’t see you going wrong getting one.

  7. Brian Matthews (verified owner)

    Only delivered yesterday and already I love it, excellent value for money, design, quality of build, air extraction amazing with two fans and the LED lighting is fantastic. A big thank you to Bartsharp Airbrush for this excellent spray booth, their customer service and delivery is also excellent.
    I highly recommend this spray booth.

  8. Brian Matthews (verified owner)

    I have only had this spray booth a few days and I must say it is fantastic, the quality of build, the twin fans gives excellent fume extraction with power control and also with the adjustable output LED lighting this spray booth produced by Bartsharp with the value for money is outstanding.
    I must say also the customer service and advice from Bartsharp is excellent.

  9. Neil Howard (verified owner)

    I’ve been using this for a few months now and the twin fans give much better extraction that my previous single fan unit, even with lacquer based model paints. The motors also seem more powerful but be aware they are a bit noisy for extended use. The built in LEDs are fantastic, really bright and well positioned and both they and the motors are adjustable on separate rotary controls. Well built and sturdy this is a bargain for the price.

  10. DT

    Good afternoon Alison,

    I would like to say how impressed I am with the service which you have provided. Communication is outstanding and prompt delivery of my spray booth.
    I can not believe how powerful this is and how well built it is on first glance.
    Just like to say a huge big thank you.

    Kind regards


  11. Nigel Frampton

    Hi Alison, Nigel here from “Nigels Modelling Bench” on You Tube. VERY impressed with the SB04, soooo much better than my old booth. I love the fact it has adjustable fan speed and lighting, so, one can have the fan on full speed whilst painting and then turn it down to 50% or so while the paint dries.
    The extra width makes life a lot easier too, as one is able to get deeper into the booth and still be able to manoeuvre the airbrush. Wish I had this booth when I built my 1/72 scale Vulcan.

  12. Malcolm Towns (verified owner)

    Ordered on Sunday arrived today(Tuesday) brilliant service, got it up running in no time not had had one with led’s before it’s going to make spraying a lot better light wise and size.

  13. Tony Isherwood (verified owner)

    Cannot add much to the above comments other than I agree wholeheartedly with their observations. As a novice I was not sure what I might need and looking on the net this cabinet seemed the best all round value.

    Some suggestions that might help some viewing this post;

    The ducting supplied is useful, but a little ridged. A trip down to Screwfix ( other suppliers are available) purchase a 100 mm diameter 90 degree ducting bend and a length of light flexible fan ducting to suit your needs, makes the extractor much easier to place the discharge of air. The bend just drops into the rubber connector as if made for the job. A bit of duct tape to hold the ducting . Job done.

    I was really surprised at the amount of spray picked up by the filter. I had some spare garden frost protective blanket which is very light, air passes through easily, and cheap. I cut a rectangle off and just pushed in front of the filter, seems to be working well as it is now covered in paint , not the filter.

    Finally, one thing that made me think it was a good purchase was seeing the amount of spray shown up by the LEDs lights when in use. A passing thought that this spray would in time settle on the LEDs and dull the output. Some cling film held with masking tape solved that problem with no loss of lighting.
